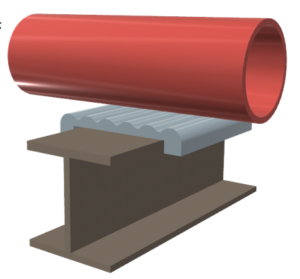

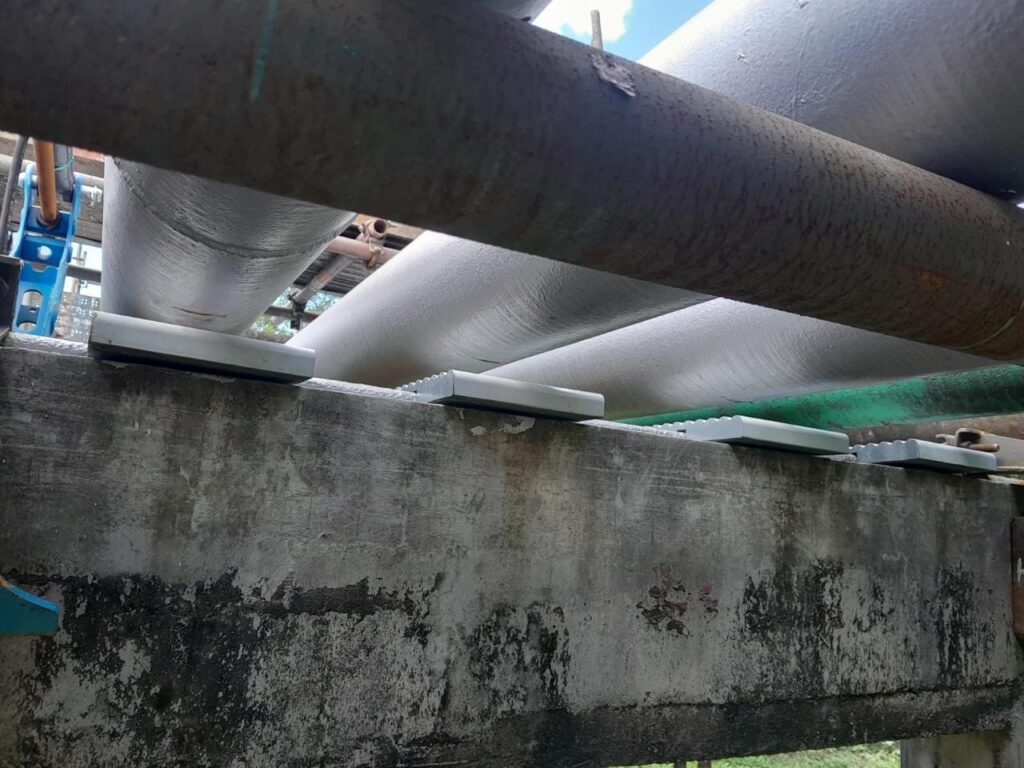

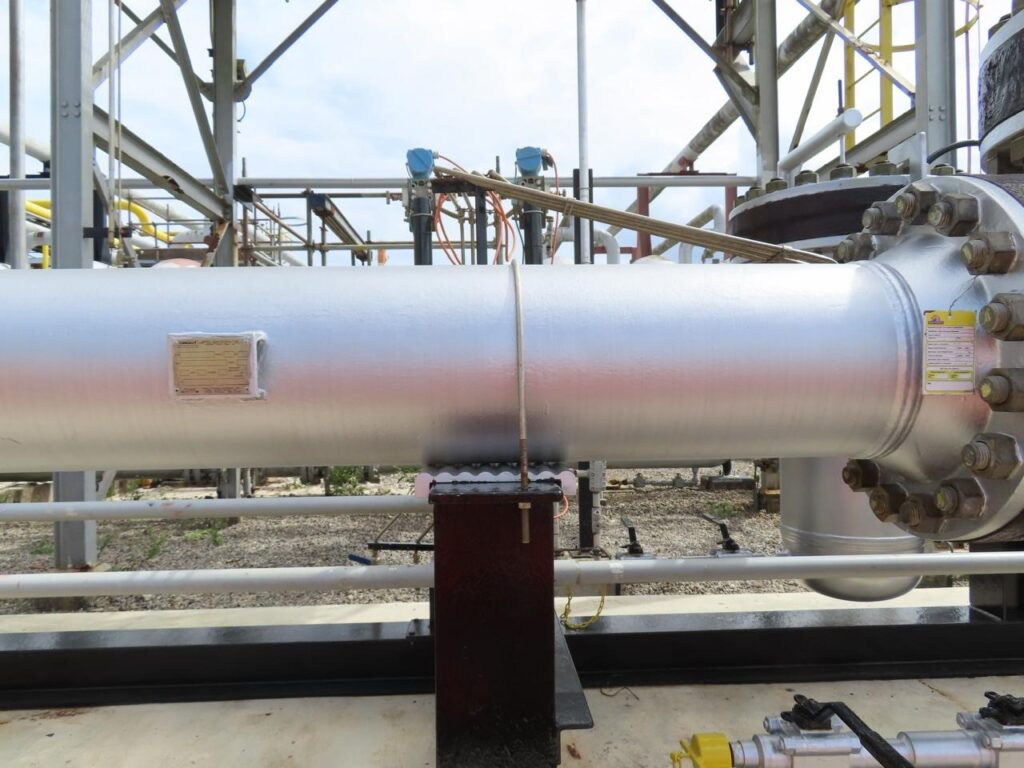

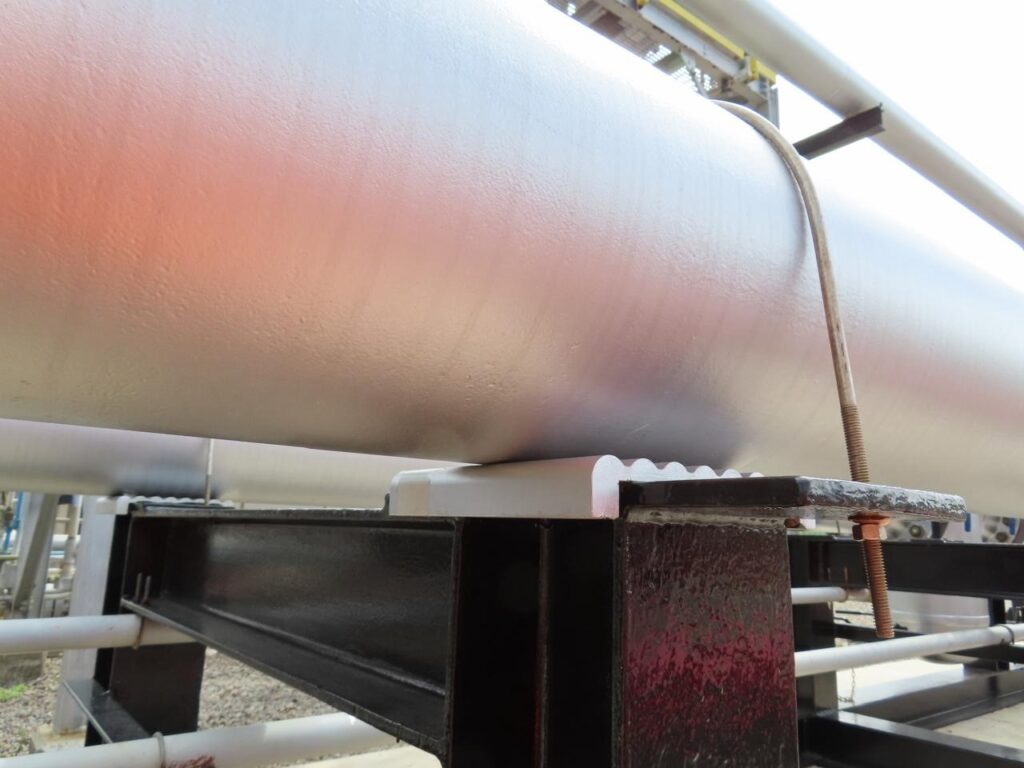

Lift-Off Rest (LOR)

LIFT-OFF RESTs (LOR) supports are available for beam / angle / channel ranging from 2” to 14” wide (WIDTH IS FIRST # IN PART NAME).  Length is recommended at 2/3 of the supported pipe NPS size; however, the length can be modified up to 120” long and can support multiple pipes.  Length should be specified by piping Engineer based on lateral movement expected.

Advantages:

• Standard 1/2″ height from TOS to BOP in all configurations.
• Formulated for operating temperatures ranging from -265°F (-165°C) to 550°F (288°C).
• High compression strength, high tensile strength.
• Low coefficient of friction on top surface.
• Non-conductive, non-reactive, non-flammable, UV stable.
• No hot work required for installation.
• Can be used alone as a rest on beam sizes up to 14″ wide (LOR).
• 100% MADE IN THE USA
