Lift-Off Rest with Guide (LORG)

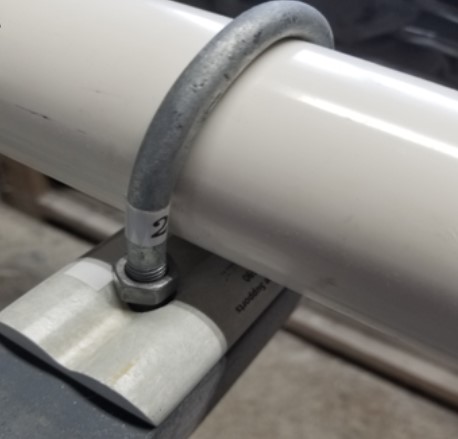

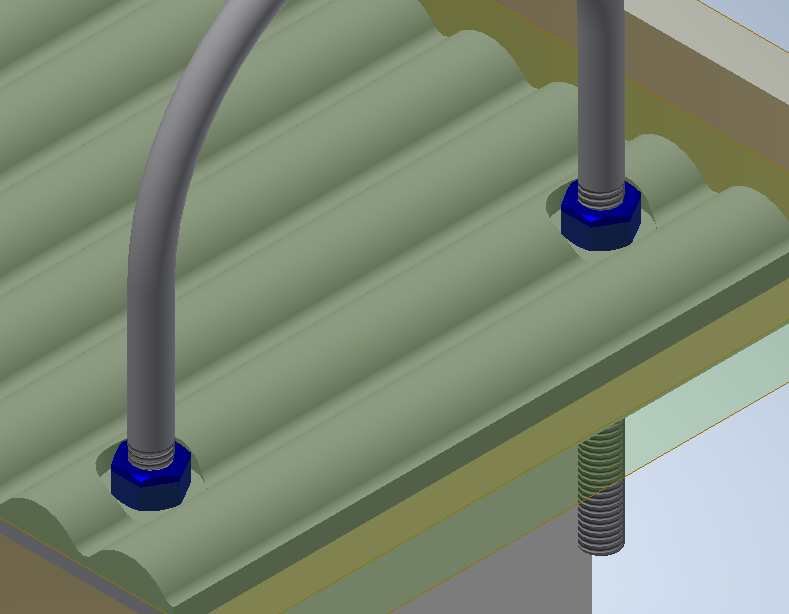

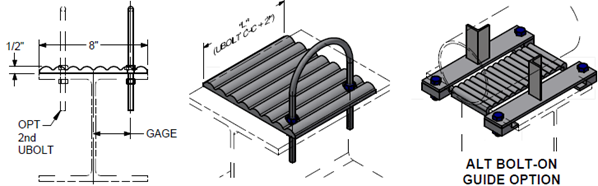

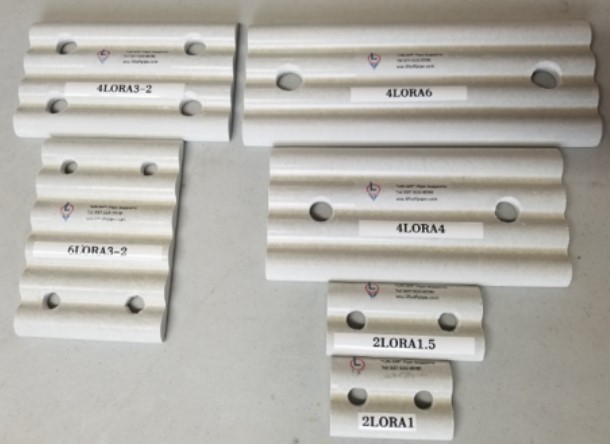

LIFT-OFF RESTs with GUIDE (LORG) supports are configured to work with U-BOLTs and require drilling in support steel as with any other U-BOLT application. LORG supports are available for beam / angle / channel ranging from 2” to 16” wide (WIDTH IS FIRST # IN PART NAME) with supported pipe NPS as the LAST # IN THE PART NAME (Ex. 4LORG2). Multiple UBOLTs and GOM or Liners can be specified. Alternatively, Delta can provide BOLT-ON LATERAL GUIDEs to eliminate field-drilling for installation if needed.
Advantages:
- Standard 1/2″ height from TOS to BOP in all configurations.
- Formulated for operating temperatures ranging from -265°F (-165°C) to 550°F (288°C).
- High compression strength, high tensile strength.
- Low coefficient of friction on top surface.
- Non-conductive, non-reactive, non-flammable, UV stable.
- No hot work required for installation.
- Can be used for any NPS.
- 100% MADE IN THE USA
